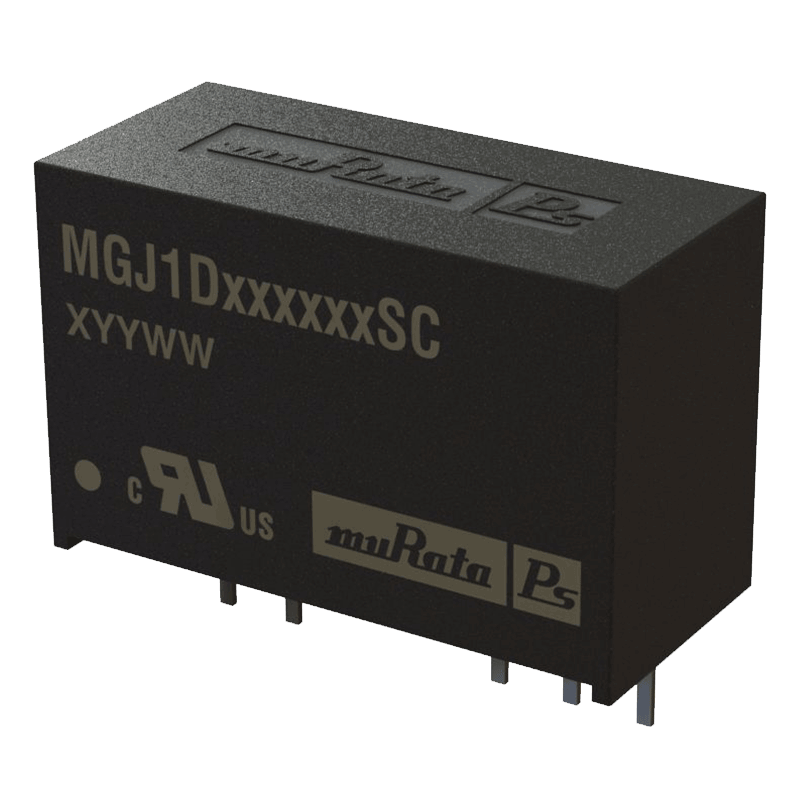

Murata村田IGBT隔離門驅動電源MGJ1D052005SC
發布時間：2023-11-27 09:09:08 瀏覽：839
Murata村田的一系列專門為柵極驅動電路設計的門驅動DCDC轉換器，通常用于新能源，運動與控制，移動性和醫療保健解決方案中。 該產品具有以下特性：
· 超低隔離電容3pF
· 優化的IGBT / SiC和MOS柵極驅動的雙極輸出電壓
· 直流鏈路電壓最高可承受3KV
· 針對局部放電的可靠性
· dv/dt抗擾度在1.6kV下高達80kV/μS
產品概述
MGJ1 SIP系列DC-DC轉換器非常適合為橋式電路中的IGBT/Mosfet, SiC和GaN柵極驅動器的“高側”和“低側”柵極驅動電路供電。非對稱輸出電壓的選擇允許最佳的驅動水平，以獲得最佳的系統效率和EMI。MGJ1 SIP系列的特點是在電機驅動器和逆變器中使用的橋式電路中常見的高隔離和dv/dt要求，而MGJ1 SIP高工作溫度額定和結構提供了長使用壽命和可靠性。
特性
· 優化的雙極輸出電壓，適用于IGBT/ Mosfet, SiC和GaN柵極驅動器
· 增強絕緣符合UL62368-1認證
· ANSI/AAMI ES60601-1, 1 MOPP/2 MOOPs待定
· 5.2k VDC隔離試驗電壓‘Hi Pot試驗’
· 超低隔離電容
· 5V, 12V, 15V, 24V輸入
· + 6v / -3v， + 15v / -3v， + 15v / -5v， + 15v / -9v，+18V/-2.5V & +20V/-5V輸出
· 操作至105°C
· 表征CMTI >200kV/?S
· 連續屏障耐壓2.4kVDC
· 特征局部放電性能
規格
| 輸出功率 (W)Max | 1W |
|---|
| 隔離電壓 (V) | 5200V |
|---|
| Continuous Barrier Withstand Voltage(V) | 2400V |
|---|
| Vin(V) | 4.5V to 5.5V |
|---|
| Vin(V)typ | 5V |
|---|
| Vout (V)typ | 20V |
|---|
| 線性調整率 (%) | 1.3％ to 1.4％ |
|---|
| 負載調整率 (%) | 5％ to 8％ |
|---|
| 效率(%) | 71.5％ |
|---|
| 尺寸 (mm)W | 8.8mm |
|---|
| 尺寸 (mm)L | 19.5mm |
|---|
| 尺寸 (mm)T | 12.5mm |
|---|
| 工作溫度(degC) | -40℃ to 105℃ |
|---|
| 輸出數 (#) | 2 |
|---|
| Iout (A)Max | 0.04A |
|---|
| 封裝 | SIP |
|---|
| 產品系列 | MGJ1 SIP |
|---|
| 產品系列特點 | The MGJ1 SIP series of DC-DC converters is ideal for powering ‘high side’ and ‘low side’ gate drive circuits for IGBT/Mosfet, SiC & GaN gate drives in bridge circuits. A choice of asymmetric output voltages allows optimum drive levels for best system efficiency and EMI. The MGJ1 SIP series is characterised for high isolation and dv/dt requirements commonly seen in bridge circuits used in motor drives and inverters, while the MGJ1 SIP high operating temperature rating and construction gives long service life and reliability. |
|---|
| 安規認證 | UL62368-1 recognised |
|---|
| Vout2 (V)typ | -5V |
|---|
| 線性調整率2 (%) | 0.25％ to 0.5％ |
|---|
| 負載調整率2 (%) | 0.5％ to 1％ |
|---|
| Iout2 (A)Max | 0.04A |
|---|
| 品牌 | Murata Power Solutions |
|---|
選型指南：
| Order Code |  |
| |
|
| Input Current | at Rated Load | Output 1 | Output 2 |
| | | |
| V | V | V | mA | % |
| MGJ1D050603SC | 5 | 6 | 3 | 111 | 111 | 260 | 0.7 | 1.5 | 25 | 30 |
| MGJ10052005SC | 5 | 20 | 5 | 40 | 40 | 280 | 5.0 | 8.0 | 0.5 | 1.0 |
| MGJ1D120603SC | 12 | 6 | 3 | 111 | 111 | 110 | 0.4 | 1.5 | 16 | 25 |
| MGJ1D121503SC | 12 | 15 | 3 | 55.6 | 55.6 | 100 | 4.0 | 8.0 | 0.5 | 1.0 |
| MGJ1D121505SC | 12 | 15 | 5 | 50 | 50 | 100 | 5.0 | 8.0 | 0.5 | 1.0 |
| MGJ1D121802SC | 12 | 18 | 2.5 | 48.8 | 48.8 | 100 | 4.0 | 7.0 | 0.5 | 1.0 |
| MGJ1D122005SC | 12 | 20 | 5 | 40 | 40 | 110 | 4.0 | 9.0 | 0.5 | 1.0 |
| MGJ10151509SC | 15 | 15 | -9 | 41.7 | 41.7 | 85 | 5.0 | 9.0 | 0.5 | 1.0 |
| MGJ10152005SC | 15 | 20 | 5 | 40 | 40 | 85 | 4.0 | 9.0 | 0.5 | 1.0 |
| MGJ10241503SC | 24 | 15 | 3 | 55.6 | 55.6 | 55 | 4.0 | 7.0 | 0.5 | 1.0 |
| MGJ10241505SC | 24 | 15 | 5 | 50 | 50 | 55 | 4.0 | 8.0 | 0.5 | 1.0 |
| MGJ1D241509SC | 24 | 15 | -9 | 41.7 | 41.7 | 55 | 5.0 | 9.0 | 0.5 | 1.0 |
| MGJ10241802SC | 24 | 18 | 2.5 | 48.8 | 48.8 | 55 | 3.0 | 7.0 | 0.5 | 1.0 |
| MGJ10242005SC | 24 | 20 | 5 | 40 | 40 | 55 | 4.0 | 8.0 | 0.5 | 1.0 |
|
| Order Code | Ripple &
NoiSe
(Typ)2 | Ripple &
NoiSa
(Max | Ftticiency
Min | Fniciency
(Typ) | soatior
Capacitance | MTTP |
| mWp-P | % | pF | MIL | TeL |
| kHrs |
| MGJ10050603SC | 20 | 50 | 73 | 77 | 3 | 3620 | 108788 |
| MGJ1D052005SC | 20 | 50 | 67 | 71.5 | 3 | 2626 | 62618 |
| MGJ1D120603SC | 20 | 50 | 74 | 79 | 3 | 3200 | 103610 |
| MGJ1D121503SC | 20 | 50 | 76 | 79.5 | 3 | 3893 | 144172 |
| MGJ1D121505SC | 20 | 50 | 77 | 80 | 3 | 3707 | 136596 |
| MGJ1D121802SC | 20 | 50 | 75 | 78 | 3 | 3477 | 133403 |
| MGJ1D122005SC | 20 | 50 | 75 | 78 | 3 | 3331 | 128852 |
| MGJ10151509SC | 20 | 50 | 74 | 78 | 3 | 3693 | 131693 |
| MGJ10152005SC | 20 | 50 | 74 | 78 | 3 | 3226 | 137002 |
| MGJ10241503SC | 20 | 50 | 71 | 76 | 3 | 3012 | 85564 |
| MGJ10241505SC | 20 | 50 | 72 | 76 | 3 | 2546 | 72774 |
| MGJ1D241509SC | 20 | 50 | 69 | 74 | 3 | 2532 | 63241 |
| MGJ1D241802SC | 20 | 50 | 69 | 74 | 3 | 2465 | 64642 |
| MGJ1D242005SC | 20 | 50 | 69 | 74 | 3 | 2453 | 63535 |
